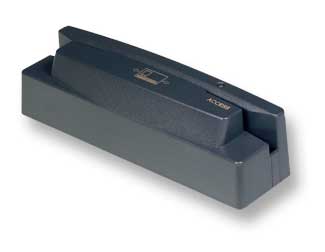

OCR32x - szczelinowy czytnik OCR zapisu typu MRZ
The dual illumination OCR reader captures code lines from machine readable text, for example with cheques (checks) in banking, travel documents, passports, visas and national ID cards in transport and automation in industrial process control.
OCR32x devices are extremely compact. Optional mounting brackets are also available to enable an OCR32x to be mounted at almost any angle and integrated into any environment.
Host connection is via an industry standard RS232 or USB interface through a detachable cable. The OCR32x is a low power device and can usually be powered from a PC keyboard or USB port, removing the need for a mains power supply unit. An auxiliary RS232 port allows connection of a decoded bar code scanner.
OCR Read Capabilities
OCR-B and E-13B fonts
Machine readable passports (MRP) : 2 lines of 44 characters
Machine readable visas (MRV) : 2 lines of 44 characters, 2 lines of 36 characters
Travel documents: 2 lines of 36 characters, 3 lines of 30 characters
OCR ticket data: data printed in accordance with IATA Recommended Practice 1720a, including ATB-1 type 407-E, 1403M, OCRB, OCRA and IATA 2 of 5 bar code data
General
Colour: Cool white or dark grey
Dimension: 217W x 60D x 59H mm
Weight: 0.65 kg
Cable length: 2.5 m
Interfaces
Host interface - OCR320/321: Bidirectional, RS232 by 9-way D-type
Host interface - OCR322/323: USB 1.1
Electrical Specifications
Power requirement: +5 VDC
Current consumption: <250 mA
Environmental
Operating temperature: 0°C to 50°C
Storage temperature: -20°C to 60°C
