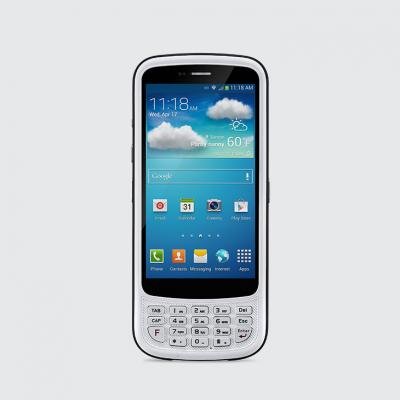

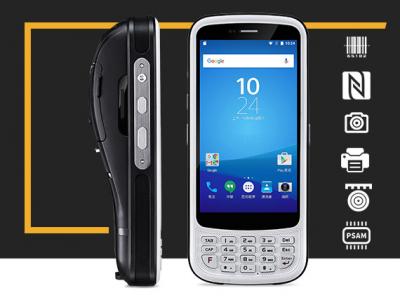

Chainway C75



Physical Characteristics
Dimensions 186.89*83.99*35.04-49.49mm
Weight 507g/17.88oz
Display 5.2'' IPS FHD 1920x1080P
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power Main battery: Li-ion, rechargeable, 8000mAh
Expansion Slot 2 PSAM slots at most (ISO7816 protocol), 1 slot for SIM card, 1 slot for SIM or TF card
Interfaces USB 2.0 Type-C, OTG
Audio Speaker, 2 microphones
Keypad 1 power key, 2 scan keys, 1 multifunctional key, numeric keyboard
Sensors Gravity sensor, light sensor, proximity sensor, vibration motor



User Environment
Operating Temp. -4°F to 122°F / -20°C to 50°C
Storage Temp. -40°F to 158°F / -40°C to 70°C
Humidity 5%RH - 95%RH non condensing
Drop Specification Multiple 1.2m/3.9ft drops to the concrete



Performance
CPU Cortex-A53 Quad-core 1.3GHz
RAM+ROM 2GB+16GB
Expansion Supports up to 32 GB Micro SD card



Developing Environment
Operating System Android 6.0
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio



Communication
WLAN IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (Europe) 2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1, B3, B5, B7, B8, B20, B40
WWAN (America) 2G: 850/900/1800/1900MHz
3G: 850/900/1700/1900MHz
4G: B2, B4, B7, B12, B17
WWAN (China) 2G: 900/1800MHz
3G: 900/1900/2000/2100MHz
4G: B1, B3, B5, B38, B39, B40, B41
WWAN (Others) Depending on the country's ISP
Bluetooth Bluetooth 4.0, BLE
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna



Barcode Scanning
1D Linear Scanner Zebra SE965 / Honeywell N4313
2D Imager Scanner Zebra SE4710 /Honeywell N6603
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note *This function is optional





Camera
Camera 13MP Autofocus with flash



Thermal Printer
Rate (mm/s) 85
Image Size (pixel) 384 dots
Paper Width (mm) 58







NFC
Frequency 13.56MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc.
Range 2-4cm



Iris Recognition
Rate <150ms
Range 20-40cm
FAR 1/10000000
Note *This function is optional
